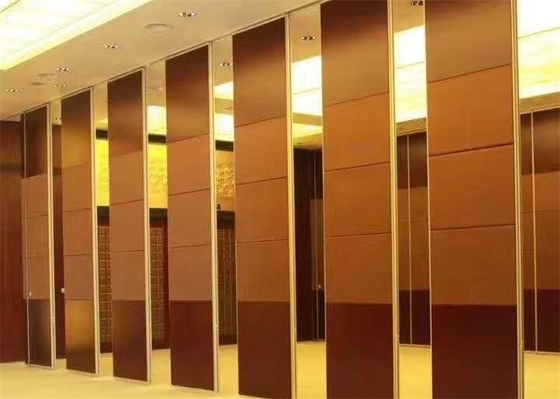

Aluminum Frame Operable Panel Partitions

Sliding Hall Partition Wall Operable Wall Partitions For Wedding Hall

Product Description

Sono movable partition wall is the top of the range and market leader in the world of movable walls. It consists of individually operated top hung panels requiring no floor tracks. Purpose made panels can be manufactured to clients specific requirements, offering total space flexibility, long lasting use and high standards of finishes, sound reduction and durability.
It is ideal for use in hotels, conference centres, lecture theatres, civic halls, meeting rooms and office environments. It is particularly adaptable to the demands of complex multi- functional usage requirements for both corporate and public environments regardless of size, finish or acoustic properties.

Product Features

1. Sono movable wall product range includes acoustic moveable walls up to 12m high with sound reductions up to Rw 55 dB with a panel thickness of just 100mm, previously only possible with thicker panels weighing much more. 30 minute fire ratings are also possible.
2. The finish panels are manufactured separately to the frame, which means that the panel linings are easy to change if one is damaged or scuffed, or the interior design of a room changes later on and also assists with the panel installation where the frames and face boards are delivered separately reducing the manual handling risk.
3. We provide you with a wide choice of finish materials and parking arrangements. It's high level of flexibility, even in the case of complicated room proportions where sloping ceilings or circular spaces have to be accommodated, ensures that you have all the benefits of optimum functionality.

Advantages

One of the biggest advantages offered by movable walls is their versatility when providing a service to a specific space. The layout is not limited and it gives one the freedom to modify it according to the needs at the time.

The system allows a choice of integral pass doors, including solid single and double doors and the ultra-transparent glass door and over panel.

Varitrans glass wall provides an attractive solution which can be incorporated to provide a feeling of wellbeing, maximising available views in every aspect. The single glazed elements can be moved manually or fully automatically at the touch of a button using Dorma’s ComfortDrive system.

Removable partition seal system

A. Each of the activties of the left and right sides of the border were equipped with concave/ oonvex frame seal device.
The device usesmulti-layer contact stip and suction magnetic stripe, can be a good mutual atiracton, so that the two pieces of acivies at the junctionof the sealing treatment to achieve the best results.

B. Activities cut off through the patented technology, the use of PVC rubber pieces filed with two pieces of partition between the pressureofall the gap between the bar can not only streitch up and down freely, but also make the sound can not penetrate, a good solution tothis old problem. This system is also unique in the domestic similar products.
