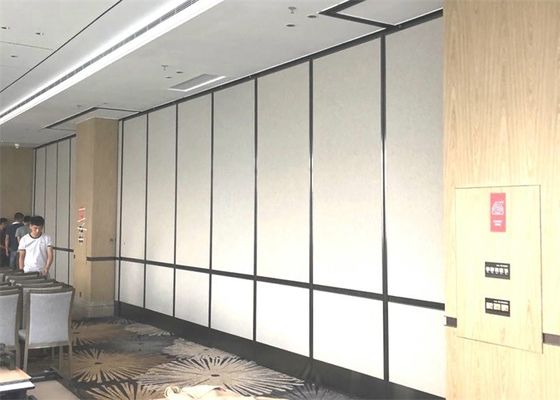

Banquet Hall Foldable Partition Walls , Acoustic Movable Walls

Banquet Hall Foldable Partition Walls , Acoustic Movable Walls

  • Banquet Hall Foldable Partition Walls , Acoustic Movable Walls
  • Banquet Hall Foldable Partition Walls , Acoustic Movable Walls
  • Banquet Hall Foldable Partition Walls , Acoustic Movable Walls
Banquet Hall Foldable Partition Walls , Acoustic Movable Walls
Product Details:
Place of Origin: Guangdong, China
Brand Name: Yunyi Acoustic
Certification: SGS, CE
Model Number: SN65
Payment & Shipping Terms:
Minimum Order Quantity: 20 Square Meter
Price: $88.80 Per Square Meter
Packaging Details: Paper Carton Or Wooden Box
Delivery Time: 7-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 Square Meters Per Month
Contact Now
Detailed Product Description
Partition Frame: Aluminium Panel Surface Finish: Acoustic Fabric
Basic Thickness: 65mm/80m/100mm Style: Modern Furniture
Surface Finish Option: Aluninium Frame With Wooden Keel General Use: Conference
High Light:

Banquet Hall Foldable Partition Walls

,

Banquet Hall Acoustic Movable Walls

,

Foldable Partition Walls Acoustic Movable

Banquet Hall Folding Partition Wall Acoustic Movable Soundproof Partition





Product Introduction:



Sono movable partition wall is the top of the range and market leader in the world of movable walls. It consists of individually operated top hung panels requiring no floor tracks. Purpose made panels can be manufactured to clients specific requirements, offering total space flexibility, long lasting use and high standards of finishes, sound reduction and durability.
It is ideal for use in hotels, conference centres, lecture theatres, civic halls, meeting rooms and office environments. It is particularly adaptable to the demands of complex multi- functional usage requirements for both corporate and public environments regardless of size, finish or acoustic properties.





Series SN65 SN80 SN100
Panel suspension Top hung only Top hung only Top hung only
Lifting point Single or twin point Single or twin point Twin point
Thickness 65mm 80/85mm 100mm
Height Up to 4 meters Up to 5 meters Up to 12 meters
Main keel Aluminum alloy,
wooden keel.
Aluminum alloy,
wooden keel.
Aluminum alloy,
wooden keel.
Base board MDF, plywood,
MgO board
MDF, plywood,
MgO board
MDF, plywood,
MgO board
Frame Aluminum frame Aluminum frame Aluminum frame
Board thickness 9mm 9/12mm 12mm


Banquet Hall Foldable Partition Walls , Acoustic Movable Walls 0





Technical Information



Model 65 sliding partition walls for hotel 85 sliding partition walls for hotel 100 sliding partition walls for hotel Ultrahigh sliding partition walls for hotel
Panel Thickness 65 MM 85 MM 100mm 100mm
Frame 6063 T6 Aluminium 6063 T6 Aluminium 6063 T6 Aluminium 6063 T6 Aluminium

Hermetic flex

distance(mm)

45mm 45mm 45mm 60mm
Faceplate Material

Class-fibr board,

Melamine decorative

lamminate board,

Gypsum board,Color

steel plate,Fiberboard,

Tempered glass

Class-fibr board,

Melamine decorative

lamminate board,

Gypsum board,Color

steel plate,Fiberboard,

Tempered glass

Class-fibr board,

Melamine decorative

lamminate board

,Gypsum board,

Color steel plate,

Fiberboard,

Tempered

glass

Class-fibr board,

Melamine decorative

lamminate board,

Gypsum board,Color

steel plate,Fiberboard,

Tempered glass

Panel Surface Finish

Anodizing,

electrophoresis,

Powder coating;

Wooden grain or

customize surface

treatment

Anodizing,

electrophoresis,

Powder coating;

Wooden grain or

customize surface

treatment

Anodizing,

electrophoresis,

Powder coating;

Wooden grain or

surface treatment

Anodizing,

electrophoresis,

Powder coating;

Wooden grain or

customize surface

treatment







Product Features



1. Sono movable wall product range includes acoustic moveable walls up to 12m high with sound reductions up to Rw 55 dB with a panel thickness of just 100mm, previously only possible with thicker panels weighing much more. 30 minute fire ratings are also possible.
2. The finish panels are manufactured separately to the frame, which means that the panel linings are easy to change if one is damaged or scuffed, or the interior design of a room changes later on and also assists with the panel installation where the frames and face boards are delivered separately reducing the manual handling risk.
3. We provide you with a wide choice of finish materials and parking arrangements. It's high level of flexibility, even in the case of complicated room proportions where sloping ceilings or circular spaces have to be accommodated, ensures that you have all the benefits of optimum functionality.

Banquet Hall Foldable Partition Walls , Acoustic Movable Walls 1





Why Choose Us?



1. Our Movable Acoustic Walls are ideally suited for high-specification where movable walls need to provide the environment with flexible, extensive stacking arrangements and high acoustic performance.
2. The made-to-measure panels of these operable walls work through an internal, retractable mechanism and move quietly and quickly along the head track. In their closed position, the movable walls are extremely secure and rigid.
3. We have provided an excellent range of panel finishes, ranging from our standard melamine to veneers to personalised digital images, to give you complete design flexibility.





Advantages



Thanks to their modern, clean lines and numerous practical benefits, glass partitions are a wonderful solution for creating modern offices, meeting rooms, shop fronts and more. Our range includes two options that suit a variety of needs: DORMA Huppe’s acoustic Variflex Glass partitions and non-acoustic Varitrans glass partitions range. So, whatever your requirements we can help you to create the perfect space.

Varitrans is ideal for residential winter gardens, banks, shops, restaurants, church halls, airports, showrooms or offices – anywhere where space division is required or a level of security, without the need for acoustics. This product can be fully customised with manifestations, or a range of finishes including screen printing, coloured writeable glass and logo placement. In addition, glazing bars can be applied to give a modern Critall look.

Varitrans glass wall provides an attractive solution which can be incorporated to provide a feeling of wellbeing, maximising available views in every aspect. The single glazed elements can be moved manually or fully automatically at the touch of a button using Dorma’s ComfortDrive system.
