Aluminum Material Sliding Partition Panels Unique Design Movable

Aluminum Material Sliding Partition Panels Unique Design Movable

  • Aluminum Material Sliding Partition Panels Unique Design Movable
  • Aluminum Material Sliding Partition Panels Unique Design Movable
  • Aluminum Material Sliding Partition Panels Unique Design Movable
  • Aluminum Material Sliding Partition Panels Unique Design Movable
Aluminum Material Sliding Partition Panels Unique Design Movable
Product Details:
Place of Origin: Guangdong, China
Brand Name: Yunyi Acoustic
Certification: CE, SGS
Model Number: SN80
Payment & Shipping Terms:
Minimum Order Quantity: 20 Square Meters
Price: US$105.8 Per Square Meter
Packaging Details: Exporting Carton
Delivery Time: 7-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 Square Meters Per Month
Contact Now
Detailed Product Description
Product Name: Sliding Room Dividers Style: Modern Style
Advantage: Energy Saving Finish Material: Acoustic Fabric
Profile: Aluminum Profile Basic Thickness: 80/100/110mm
High Light:

Aluminum Material Sliding Partition Panels

,

Sliding Partition Panels Unique Design Movable

,

110mm Movable Partition Panels

Moving Partition Wall Aluminum Material Sliding Room Dividers Partition Panel





Product Description



Sono movable partition wall is the top of the range and market leader in the world of movable walls. It consists of individually operated top hung panels requiring no floor tracks. Purpose made panels can be manufactured to clients specific requirements, offering total space flexibility, long lasting use and high standards of finishes, sound reduction and durability.
It is ideal for use in hotels, conference centres, lecture theatres, civic halls, meeting rooms and office environments. It is particularly adaptable to the demands of complex multi- functional usage requirements for both corporate and public environments regardless of size, finish or acoustic properties.





Why Choose Us?



Our Movable Acoustic Walls are ideally suited for high-specification where movable walls need to provide the environment with flexible, extensive stacking arrangements and high acoustic performance.
The made-to-measure panels of these operable walls work through an internal, retractable mechanism and move quietly and quickly along the head track. In their closed position, the movable walls are extremely secure and rigid.
We have provided an excellent range of panel finishes, ranging from our standard melamine to veneers to personalised digital images, to give you complete design flexibility.

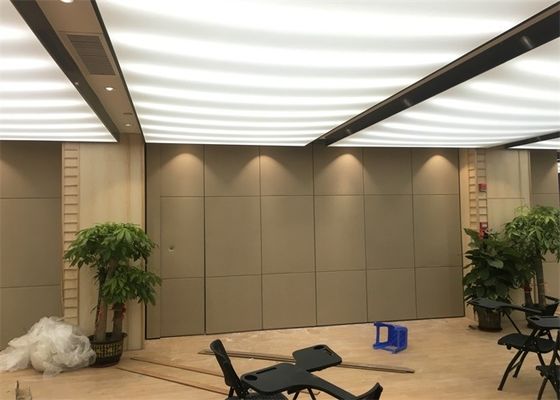

Aluminum Material Sliding Partition Panels Unique Design Movable 0

Series SN65 SN80 SN100
Panel suspension Top hung only Top hung only Top hung only
Lifting point Single or twin point Single or twin point Twin point
Thickness 65mm 80/85mm 100mm
Height Up to 4 meters Up to 5 meters Up to 12 meters
Main keel Aluminum alloy,
wooden keel.
Aluminum alloy,
wooden keel.
Aluminum alloy,
wooden keel.
Base board MDF, plywood,
MgO board
MDF, plywood,
MgO board
MDF, plywood,
MgO board
Frame Aluminum frame Aluminum frame Aluminum frame
Board thickness 9mm 9/12mm 12mm



Advantages



1. Elegant and contemporary in design and hugely popular across multiple sectors, glass partitions allow light to flood your space. Yet while glass partitions do indeed maximise the feeling of openness, they also provide crucial functionality when it comes to creating practical private areas.

2. Discreet horizontal and slimline vertical profiles maximise the glazing at the element joints, available in anodised aluminium or with coloured options. The unique frame profile allows Variflex glass elements to be combined with Variflex Solid elements in a variety of panel finishes including laminate, fabric and veneer for a truly integrated appearance and proving to be the first choice for corporate board rooms.

3. Varitrans glass wall provides an attractive solution which can be incorporated to provide a feeling of wellbeing, maximising available views in every aspect. The single glazed elements can be moved manually or fully automatically at the touch of a button using Dorma’s ComfortDrive system.





Removable partition seal system



·Each of the activties of the left and right sides of the border were equipped with concave/ oonvex frame seal device.
The device usesmulti-layer contact stip and suction magnetic stripe, can be a good mutual atiracton, so that the two pieces of acivies at the junctionof the sealing treatment to achieve the best results.

·Activities cut off through the patented technology, the use of PVC rubber pieces filed with two pieces of partition between the pressureofall the gap between the bar can not only streitch up and down freely, but also make the sound can not penetrate, a good solution tothis old problem. This system is also unique in the domestic similar products.

Aluminum Material Sliding Partition Panels Unique Design Movable 1
