Factory Direct Office Glass Partition Walls Aluminium Channel Glass Wall

Factory Direct Office Glass Partition Walls Aluminium Channel Glass Wall

  • Factory Direct Office Glass Partition Walls Aluminium Channel Glass Wall
  • Factory Direct Office Glass Partition Walls Aluminium Channel Glass Wall
  • Factory Direct Office Glass Partition Walls Aluminium Channel Glass Wall
Factory Direct Office Glass Partition Walls Aluminium Channel Glass Wall
Product Details:
Place of Origin: Guangdong, China
Brand Name: Yunyi Acoustic
Certification: CE
Model Number: SN40
Payment & Shipping Terms:
Minimum Order Quantity: 20 Square Meters
Price: US$52.60 Per Square Meter
Packaging Details: Exporting Carton
Delivery Time: 12-18 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Square Meters Per Month
Contact Now
Detailed Product Description
Apply For: Hospital Thickness: 40mm
Glass Type: Frosted Glass Types: Modern Glass Partition
Product Name: Aluminum Frame Glass Partition Partition Frame: Aluminum Profile

Factory Direct Office Glass Partition Walls Aluminium Channel Glass Wall





Product Description



Glass partitions can be ceiling high or half height depending on the situation and the client’s requirements. Subtle lighting can be used as interior decoration and designed to match the company’s corporate colours. They can be made of glass blocks which are more permanent, or of glass sheets in frames which are demountable and can be moved around.

Single Glazed Glass Partitions are a great way to enhance your office. By separating work areas and still allowing natural light to pass from room to room, glass partitions will give a spacious feel to your work environment.
Partition Framework – Slim, minimal appearance to the head and base track (25mm). Standard colours are silver (RAL 9006) or black (RAL 9004). Other colours are available on request.
Glass – Clear, toughened (non-fire rated) safety glass with acoustic noise reduction of up to 33dB. Glass thickness is 10mm (max height 2700mm) or 12mm (max height 3000mm).
Single Glazed Glass doors provides the smallest seamless effect. The default width is 900 mm. You can choose sliding doors, swing doors and floor spring doors.



Model SN40 SN80-1 SN80-2 SN103

Model

Description

Sono 40 series with single layer glass Sono 80 series with single layer glass Sono 80 series with double layer glass Sono 103 series with double layer glass
Structure Thickness 40mm 80mm 80mm 103mm
Glass Thickness 8/10mm 10/12mm 5/6mm 5/6mm
Frame Color Anodized, power coated, painted with wood grain
Glass Color Clear glass, tinted glass, laminated glass, frosted glass, photochromic glass
Louver Option Not available Not available Manual or electric

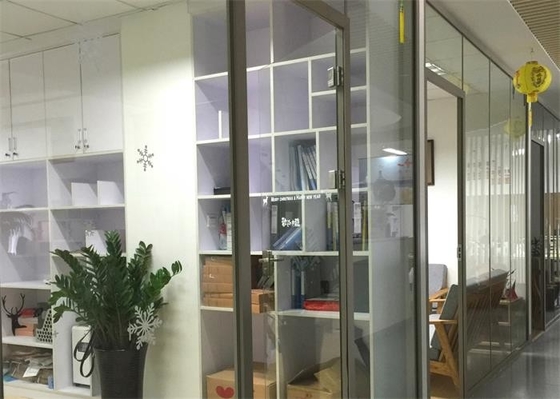

Factory Direct Office Glass Partition Walls Aluminium Channel Glass Wall 0





Product Introduction And Our Advantages



1. Discreet horizontal and slimline vertical profiles maximise the glazing at the element joints, available in anodised aluminium or with coloured options.
2. The unique frame profile allows glass elements to be combined with solid elements in a variety of panel finishes including laminate, fabric and veneer for a truly integrated appearance.
3. The system allows a choice of integral pass doors, including solid single and double doors and the ultra-transparent glass door and over panel.
4. Enhancements can include automated integrated blinds or switchable 'Magic Glass' for instant privacy.
5. This product can be fully customised with manifestations, or a range of finishes including screen printing, coloured writeable glass and logo placement. In addition, glazing bars can be applied to give a modern look.





Advantage



Glass partition can maintain the permeability of the use area. It can provide a quiet working environment for the office to ensure that employees are not disturbed when working.

Glass partition has good privacy. It is simple in construction, easy to operate, and has environmental protection function, which can be reused many times. SONO glass partition can be customized according to your different needs.

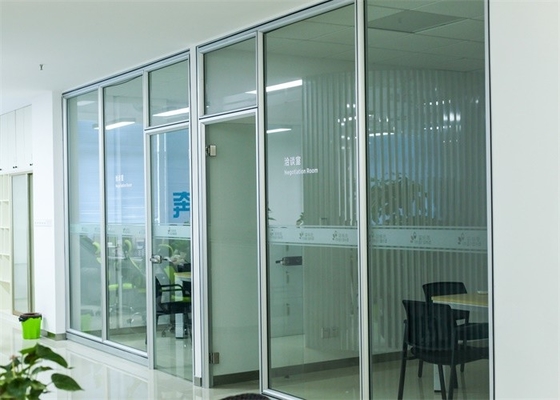

Factory Direct Office Glass Partition Walls Aluminium Channel Glass Wall 1

The size, color and finishes. We can produce the partitions wall based on the difference demands of different client. The price is difference based on the different size and material, Welcome to contact us for more details.
