Place of Origin: | Guangdong, China |
Brand Name: | Yunyi Acoustic |
Certification: | SGS |
Model Number: | SN40 |
Minimum Order Quantity: | 20 Square Meters |
---|---|
Price: | US$52.60 Per Square Meter |
Packaging Details: | Exporting Carton |
Delivery Time: | 12-18 Days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 Square Meters Per Month |
Apply For: | Commercial Furniture | Partition Frame: | Steel Frame |
---|---|---|---|
Product Name: | Aluminum Frame Glass Partition | Thickness: | 40mm |
Glass Type: | Colored Glass | Types: | Toughened Glass Partitions |
Customized Metal Glass Wall Partition French Partition Glass Wall
Product Description

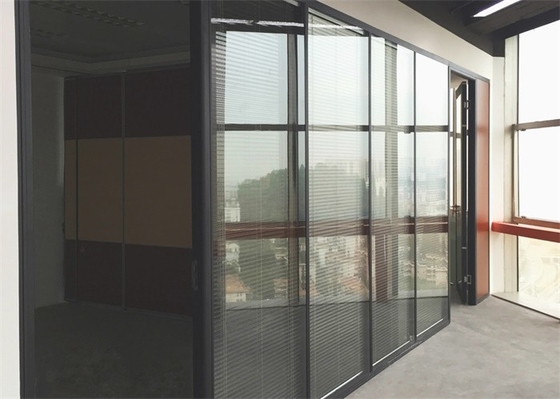

Office glass partition is a kind of non-load-bearing partition wall, which is composed of tempered glass, titanium magnesium alloy and aluminum louvered in the middle. Tempered glass, also known as safety glass, is transparent and soundproof, providing a good working atmosphere for the open office space. The aluminum alloy shutter in the middle, can ensure the privacy of the space, and adjust the light intensity. For the styles, there are single layer glass, double layer glass for choice, and the glassed can be replaced by wooden panels. These diversified combinations ensure the high-end, clean, quiet and efficient of office space.
Single Glazed Glass Partitions are a great way to enhance your office. By separating work areas and still allowing natural light to pass from room to room, glass partitions will give a spacious feel to your work environment.
Partition Framework – Slim, minimal appearance to the head and base track (25mm). Standard colours are silver (RAL 9006) or black (RAL 9004). Other colours are available on request.
Glass – Clear, toughened (non-fire rated) safety glass with acoustic noise reduction of up to 33dB. Glass thickness is 10mm (max height 2700mm) or 12mm (max height 3000mm).
Single Glazed Glass doors provides the smallest seamless effect. The default width is 900 mm. You can choose sliding doors, swing doors and floor spring doors.
Model | SN40 | SN80-1 | SN80-2 | SN103 |
Model Description |
Sono 40 series with single layer glass | Sono 80 series with single layer glass | Sono 80 series with double layer glass | Sono 103 series with double layer glass |
Structure Thickness | 40mm | 80mm | 80mm | 103mm |
Glass Thickness | 8/10mm | 10/12mm | 5/6mm | 5/6mm |
Frame Color | Anodized, power coated, painted with wood grain | |||
Glass Color | Clear glass, tinted glass, laminated glass, frosted glass, photochromic glass | |||
Louver Option | Not available | Not available | Manual or electric |
Technical Feature
Sound insulation: Double layer glass with middle insulation layer.
6063T-6 Aluminum frame: Adopt famous brand aluminum alloy according to GB5237 national standard to ensure the quality and performance.
Flexible collocation: Modular structure, flexible layout, different modules can be freely matched, can be designed according to the site and decoration style, to create a more comfortable office space.
Recyclable: Based on the unique advantages of modular design, it has the characteristics of green environmental protection and reusable, and the recovery rate is up to 85%, which endows the product with higher use value.
Special design: The frame is made of inner steel and outer aluminum, and the special panel fixed methods, make the structure more stable and reliable while maintaining beautiful appearance.
Advantage
Using glass in an office environment gives a lasting impression to visitors, customers and staff. The main benefit of glass walls is to create a more open plan feel in a office or commercial space. Allowing light to pass through also makes the area more comfortable to work in.
Full height glass doors are also an added feature of the frameless glass partitions. Elegant features such as the stainless steel pull handles and soft door closers add a touch of class to the partition finish.
1. Glass partition can maintain the permeability of the use area.
2. It can provide a quiet working environment for the office to ensure that employees are not disturbed when working.
3. Glass partition has good privacy.
4. It is simple in construction, easy to operate, and has environmental protection function, which can be reused many times.
5. SONO glass partition can be customized according to your different needs.
