Place of Origin: | Guangdong, China |
Brand Name: | Yunyi Acoustic |
Certification: | SGS, CE |
Model Number: | SN80 |
Minimum Order Quantity: | 20 Square Meter |
---|---|
Price: | $105.80 Per Square Meter |
Packaging Details: | Paper Carton Or Wooden Box |
Delivery Time: | 7-15 Days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 Square Meters Per Month |
Frame: | Aluminium | Partition Thickness: | 65mm/80m/100mm |
---|---|---|---|
Decoration: | Woooden Grain | Panel Structre: | Aluninium Frame With Wooden Keel |
Apperance: | Modern Furniture | Apply For: | Conference |
High Light: | Customized Hall Folding Operable Wall Partitions,Operable Wall Partitions Divider Sound Reduction,room dividers partitions Sound Reduction |

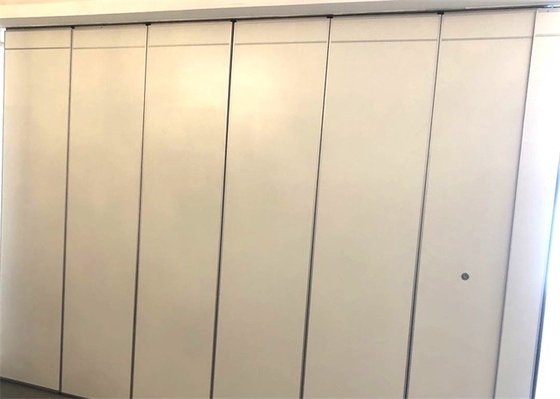

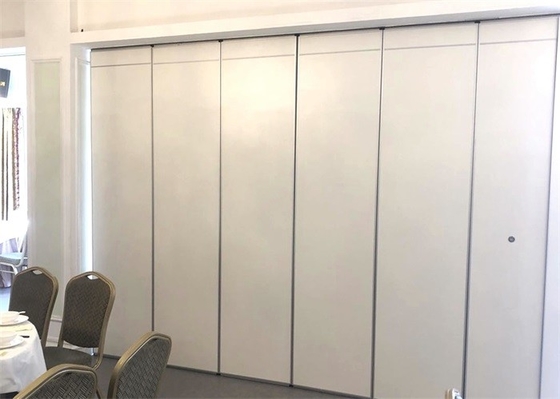

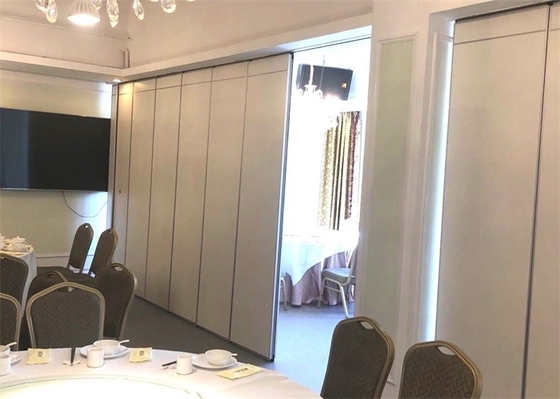

Movable Soundproof Office Movable Frameless Aluminium Frame Office Wall
Product Introduction:
Sono movable partition wall is the top of the range and market leader in the world of movable walls. It consists of individually operated top hung panels requiring no floor tracks. Purpose made panels can be manufactured to clients specific requirements, offering total space flexibility, long lasting use and high standards of finishes, sound reduction and durability.
It is ideal for use in hotels, conference centres, lecture theatres, civic halls, meeting rooms and office environments. It is particularly adaptable to the demands of complex multi- functional usage requirements for both corporate and public environments regardless of size, finish or acoustic properties.
Series | SN65 | SN80 | SN100 |
Panel suspension | Top hung only | Top hung only | Top hung only |
Lifting point | Single or twin point | Single or twin point | Twin point |
Thickness | 65mm | 80/85mm | 100mm |
Height | Up to 4 meters | Up to 5 meters | Up to 12 meters |
Main keel | Aluminum alloy, wooden keel. |
Aluminum alloy, wooden keel. |
Aluminum alloy, wooden keel. |
Base board | MDF, plywood, MgO board |
MDF, plywood, MgO board |
MDF, plywood, MgO board |
Frame | Aluminum frame | Aluminum frame | Aluminum frame |
Board thickness | 9mm | 9/12mm | 12mm |
Technical Information
Model | 65 sliding partition walls for hotel | 85 sliding partition walls for hotel | 100 sliding partition walls for hotel | Ultrahigh sliding partition walls for hotel |
Panel Thickness | 65 MM | 85 MM | 100mm | 100mm |
Frame | 6063 T6 Aluminium | 6063 T6 Aluminium | 6063 T6 Aluminium | 6063 T6 Aluminium |
Hermetic flex distance(mm) |
45mm | 45mm | 45mm | 60mm |
Faceplate Material |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board ,Gypsum board, Color steel plate, Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
Panel Surface Finish |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Product Features
1. Sono movable wall product range includes acoustic moveable walls up to 12m high with sound reductions up to Rw 55 dB with a panel thickness of just 100mm, previously only possible with thicker panels weighing much more. 30 minute fire ratings are also possible.
2. The finish panels are manufactured separately to the frame, which means that the panel linings are easy to change if one is damaged or scuffed, or the interior design of a room changes later on and also assists with the panel installation where the frames and face boards are delivered separately reducing the manual handling risk.
3. We provide you with a wide choice of finish materials and parking arrangements. It's high level of flexibility, even in the case of complicated room proportions where sloping ceilings or circular spaces have to be accommodated, ensures that you have all the benefits of optimum functionality.
Highest acoustic rating
Our outstanding range of acoustic movable partitioning walls offer superb sound reduction properties and effortless manoeuvrability. The lightweight sliding panels have been expertly designed to allow users to quickly and effectively optimise space by stacking neatly at the side of a room to open it up or alternatively sliding along a top track to create multiple separate areas.
Advantages
Thin, lightweight and highly flexible, Sono movable walls are a hugely popular solution for spaces that need to be quickly subdivided or opened up according to the user's changing needs. With three different models available in a multitude of thickness, and different finish options, creating the ideal system for your space becomes very simple.
