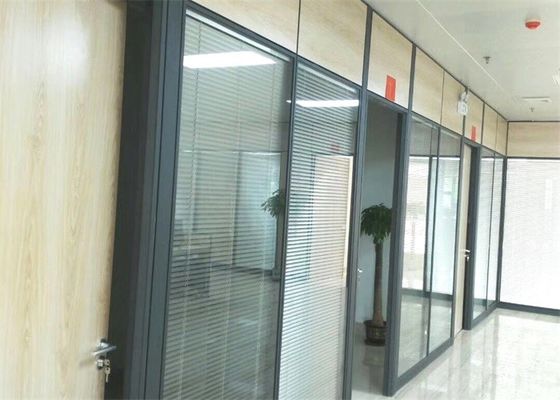

Aluminium Frame Glass Partition For Office Building

Aluminium Frame Glass Partition For Office Building

  • Aluminium Frame Glass Partition For Office Building
  • Aluminium Frame Glass Partition For Office Building
  • Aluminium Frame Glass Partition For Office Building
Aluminium Frame Glass Partition For Office Building
Product Details:
Place of Origin: Guangdong, China
Brand Name: SONO
Certification: SGS
Model Number: SN80mm
Payment & Shipping Terms:
Minimum Order Quantity: 20 Square Meters
Price: US$52.60 Per Square Meter
Packaging Details: Exporting Carton
Delivery Time: 12-18 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Square Meters Per Month
Contact Now
Detailed Product Description
Features: Sturdy & Durable Makings: Glass + Aluminum
Apply For: Office Building Type: Modern Glass Partition
Thickness: 80mm Apperance: Modern Office Furniture
High Light:

Aluminium Frame Glass Partition

,

80mm Aluminium Frame Glass Partition

Aluminum Frame Wall Partitioning For Office Wooden Partitions​





Product Description



A. Single Glazed Glass Partitions are a great way to enhance your office. By separating work areas and still allowing natural light to pass from room to room, glass partitions will give a spacious feel to your work environment.
Partition Framework – Slim, minimal appearance to the head and base track (25mm). Standard colours are silver (RAL 9006) or black (RAL 9004). Other colours are available on request.
Glass – Clear, toughened (non-fire rated) safety glass with acoustic noise reduction of up to 33dB. Glass thickness is 10mm (max height 2700mm) or 12mm (max height 3000mm).
Single Glazed Glass doors provides the smallest seamless effect. The default width is 900 mm. You can choose sliding doors, swing doors and floor spring doors.

B. Double Glazed Glass Partitions are a great way to enhance your office. By separating work areas and still allowing natural light to pass from room to room; glass partitions will give a spacious feel to your work environment.
Partition Framework – Slim minimal appearance floor and ceiling tracks to take two layers of glass. Standard colours are silver (RAL 9006) or black (RAL 9004). Other colours are available on request.
Glass – We are able to offer higher performance glass options to achieve 43dB sound insulation, using 5mm and 8mm toughened glass. For higher acoustic performing systems please contact us.
Double Glazed Glass doors provides the best sound isolation. The default width is 900 mm. You can choose sliding doors, swing doors and floor spring doors.

Model SN40 SN80-1 SN80-2 SN103

Model

Description

Sono 40 series with single layer glass Sono 80 series with single layer glass Sono 80 series with double layer glass Sono 103 series with double layer glass
Structure Thickness 40mm 80mm 80mm 103mm
Glass Thickness 8/10mm 10/12mm 5/6mm 5/6mm
Frame Color Anodized, power coated, painted with wood grain
Glass Color Clear glass, tinted glass, laminated glass, frosted glass, photochromic glass
Louver Option Not available Not available Manual or electric



Aluminium Frame Glass Partition For Office Building 0





About Us



1. Discreet horizontal and slimline vertical profiles maximise the glazing at the element joints, available in anodised aluminium or with coloured options.
2. The unique frame profile allows glass elements to be combined with solid elements in a variety of panel finishes including laminate, fabric and veneer for a truly integrated appearance.
3. The system allows a choice of integral pass doors, including solid single and double doors and the ultra-transparent glass door and over panel.
4. Enhancements can include automated integrated blinds or switchable 'Magic Glass' for instant privacy.
5. This product can be fully customised with manifestations, or a range of finishes including screen printing, coloured writeable glass and logo placement. In addition, glazing bars can be applied to give a modern look.





Product Design​



We design profiles and systems that are easy to install, highly soundproof and fire resistant for our modular partition wall and door systems, which are owned by all designs and patents.
Project
We identify the materials that should be used according to details of project and start working on your projects accordingly.
Manufacturing
We use computer-controlled machines to produce materials to keep the error within a very small range.
Delivery
We safely realize domestic and international shipment of materials we produce, with the right packaging and transportation methods.
Assembly
We complete our projects by assembling our modular partition wall and door systems in high quality and as soon as possible.



Aluminium Frame Glass Partition For Office Building 1





FAQ



1. What is your MOQ?
Any order quantity is welcome.
But sometimes the cost goes high without large quantity.

2. What is the payment term?
We accept PayPal, Western Union or T/T.
Details will advise after your the drawing comfired.

3. Can I get free samples?
Sure you can. Please send your request via email.

4. What is the shipping methods?
For small amount, usually send by air shipping. (DHL/UPS/FedEx) Take 4-5 working days.
For large amount, usually delivery by ship. (FOB/CNF/CIF) Take around 25-30 working days (Depend on which country)

5. What file format should I provide?
The clear file such as .Ai, .pdf, .psd or .cdr format file is the best.
